The superior anti-vibration performance of the DIN EN 1663 lock nut: when the thread is tightened, the crest thread of the bolt tightly enters the 30° wedge-shaped slope of the nut and is clamped, and the normal force exerted on the wedge-shaped slope is the same as the bolt's normal force. The axis forms an included angle of 60° instead of 30°. Therefore, the normal force generated when the DIN EN 1663 lock nut is tightened is much larger than that of the ordinary standard nut. Moreover, the DIN EN 1663prevailing lock nut also has a great anti-loose and anti-vibration ability.

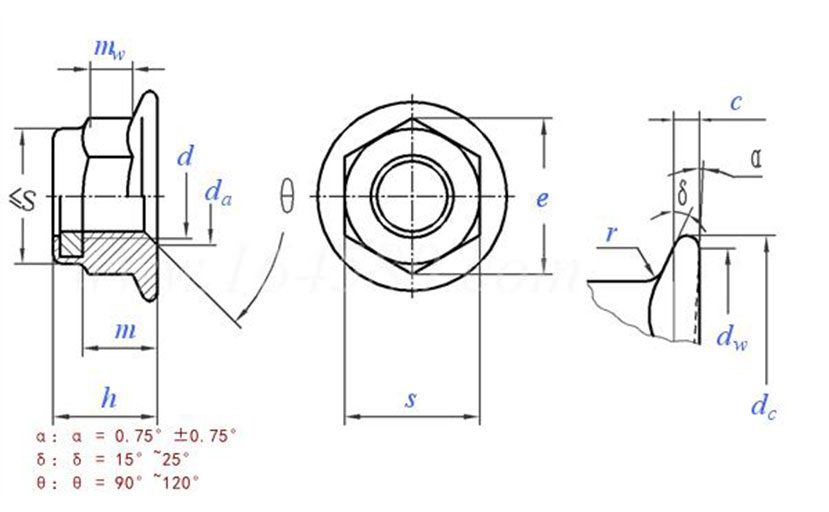

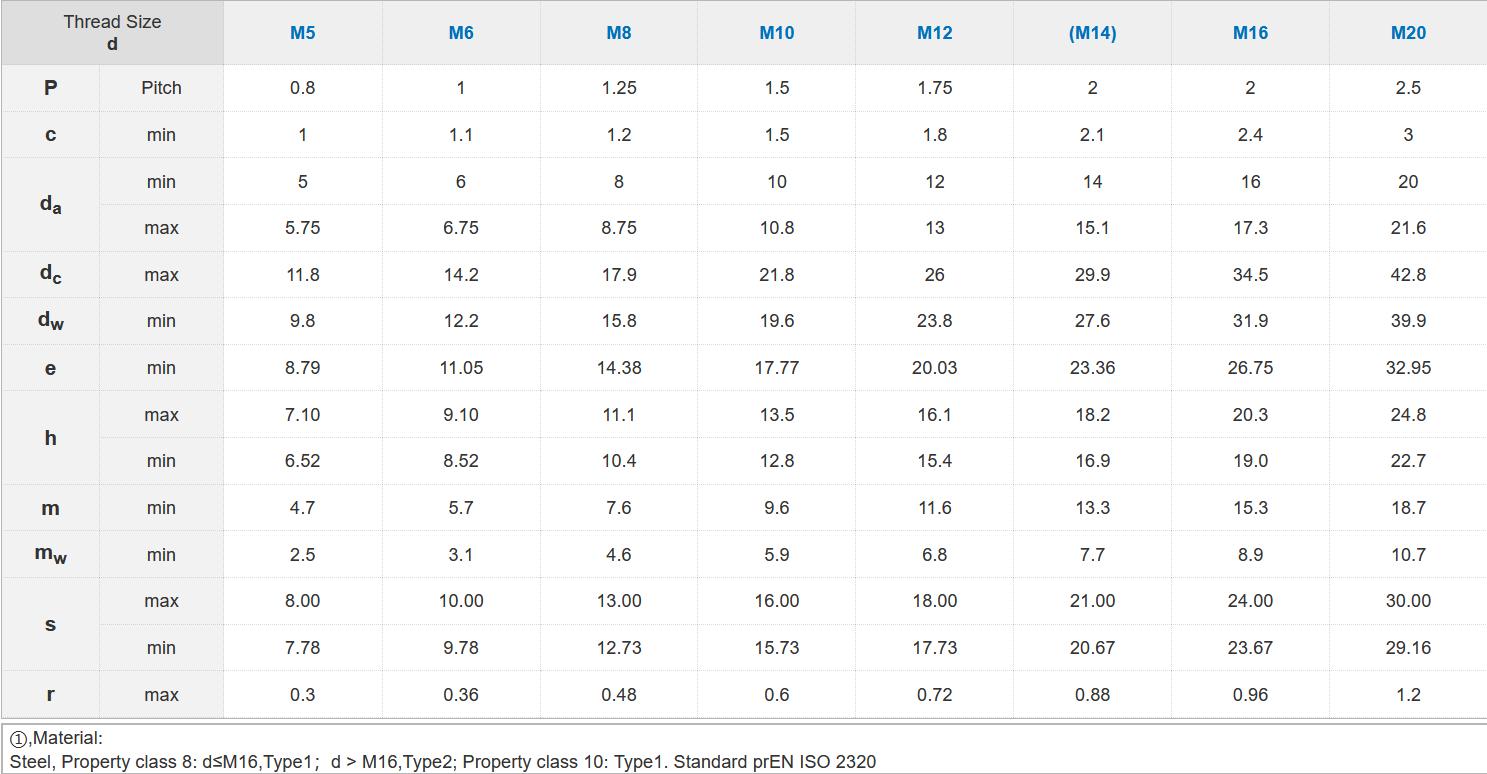

DIN EN 1663 - 1998 Prevailing Torque Type Hexagon Nuts With Flange And With Non-Metallic Insert
Equivalent norm: GB/T 6183.1, ISO 7043, EN 1663
